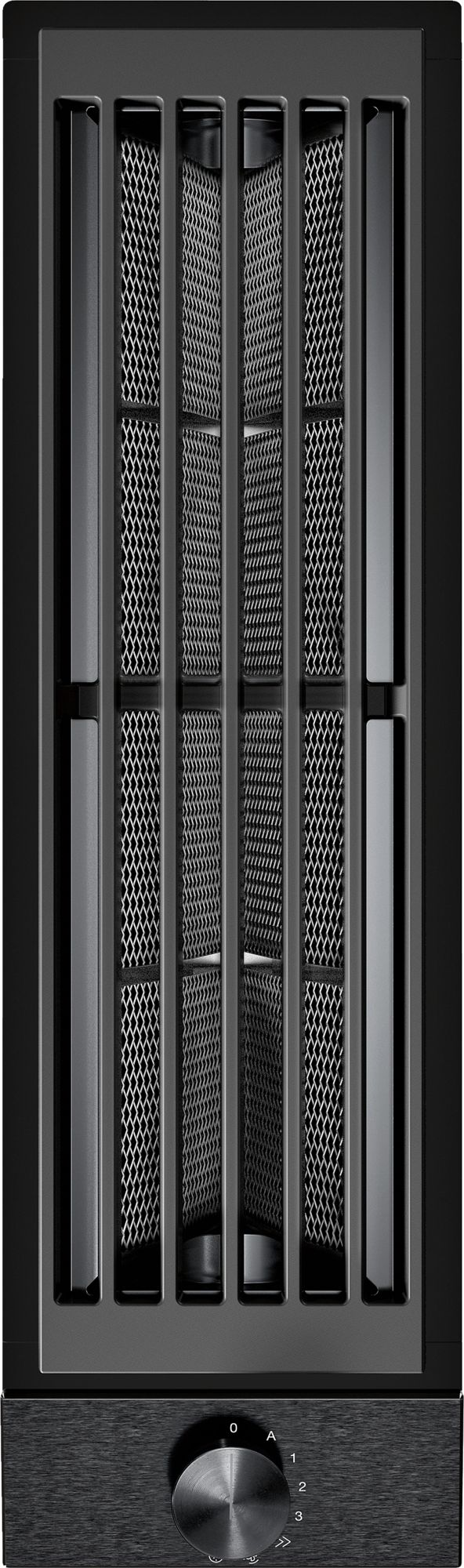

Gaggenau Vario 200 Series 6" Black Downdraft Ventilation

Model #: VL200120

At a Glance

• Can be combined with the cooktops of the Vario 200 series to a harmonic unity
• Highly efficient ventilation system at the cooktop integrated in the countertop
• Function for automatic, sensorcontrolled power adjustment depending on the build-up of cooking vapors
• Minimal planning and easy installation
• Low-noise system with recirculation blower AR410 710
• Air recirculation system

Output

• Power levels depend on the remote blower.

Features

• Control knobs with illuminated ring.
• 3 electronically controlled power levels and 1 intensive mode.
• Automatic function with sensor-controlled run-on function.
• Large-scale metal grease filter with high grease absorption.
• Grease filter, dishwasher-safe.
• Grease filter and activated charcoal filter saturation indicator.
• Airflow-optimized interior for efficient air circulation.
• Interval ventilation, 6min.
• Enameled ventilation grill, dishwashersafe.
• Air exhaust bend included in delivery.
• Overflow 8.5 oz. (250ml) capacity.

Consumption data

• Consumption data is referred to a configuration with the recirculation blower AR410 710.
• Sound level min. 56 dB / max. 76 dB.

Planning notes

• Air recirculation mode in combination with recirculation blower with AR410 710 or AR413 722.
• For each VL one blower unit is recommended.
• Maximum cooktop width between 2 VL downdraft units: 24" (60 cm).
• If installed next to gas appliances, the air deflector LS041 001 is recommended to ensure maximum performance of the cooktop.
• When having installed the air deflector LS041 001 the wok pan WP400 001 can not be used.

Rating

• 120 V / 60 Hz
• Connecting cable 66" (1.7m) between VL and recirculation/inline blower.
