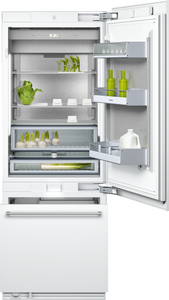

Gaggenau 16 Cu. Ft. Bottom Freezer Refrigerator

Model #: RB472701
At a Glance
These fridge-freezers offer all the benefits of the new Vario 400 modular refrigeration columns in a single appliance – with classic cooling on top and a super efficient freezer compartment below. The shelves are made of safety glass and can be positioned individually. And for even more flexibility, one of the safety glass shelves is asymmetrically divided.
Price Starting At
$11,199.00Save $8,356.00
You Might Also Need

Haul Away

Haul Away Service

x 1

Protection Plans

4 Year Protection Plan

x 1


Get to know this product.

Main Facts

  • Width 30" (76.2 cm)
  • Stainless steel interior
  • Generous LED lighting concept
  • Solid aluminum door bins
  • Net volume 16.2 cu.ft.
  • Integrated automatic ice maker with fixed water connection
  • One motorized glass shelf, adjustable when fully loaded
  • Fully extendable freezer drawer with practical divider
  • ENERGY STAR® qualified


  • Electronic precision temperature control with digital temperature display.

Technical Features

  • Dynamic cool air distribution with Multi-Flow Air System.
  • Automatic defrosting with defrost water evaporation.
  • Activated charcoal air filter.
  • Energy-saving vacation mode.
  • Open-door and malfunction warning system.

Cooling Compartment

  • Net volume 11 cu. ft.
  • No-frost technology with fast cooling.
  • Temperature adjustable from 35 °F to 46 °F (+2 °C to +8 °C).
  • 3 safety glass shelves, 1 of which is motorized.
  • 1 fully extendable drawer with transparent front.
  • Bright interior lighting with LED sidewall pillars.
  • 2 height adjustable door bins, one large gallon door bin.
  • 1 door bin with transparent front flap.

Temperature Controlled Drawer

  • Net volume 0.7 cu. ft.
  • No-frost technology.
  • 1 continuous, fully-extendable temperature controlled drawer with transparent front and integrated lighting.

Freezer Compartment

  • Net volume 4.9 cu. ft.
  • (138 liters).
  • No-frost technology with fast freezing.
  • Temperature adjustable from 7 °F to -9 °F (-14 °C to -25 °C).
  • 2 fully extendable drawers.
  • Interior lighting with 1 spot.

Ice Dispenser

  • Integrated automatic ice maker in the freezer compartment, with fixed water connection.
  • Ice maker can be switched off independently.
  • Ice cube production approx. 3.5 lb (1.7 kg)/24 h.
  • Removable ice storage bin with approx. 6.6 lb (3 kg) capacity.

Consumption Data

  • Energy consumption 1.495 kwh/24 h.
  • Energy consumption 545.68 kwh/year.
  • Noise level 43 dB.


  • Total rating 0.588 kW.
  • Total Amps: 10 A.
  • 120 V / 60 Hz
  • Connecting cable 139 1/3" with plug.
  • Supply hose 118" with 3/4" connection.


Kilowatt Hrs. per Year:546
ENERGY STAR® Qualified:Yes


Freezer Light:Yes


Shipping Weight:481




Door Alarm:Yes
Advanced Freezer Technology:No-Frost Technology
Defrost System:Automatic
Advanced Cooling System:Multi-Flow Air System
Air Filtration:Charcoal
Humidity Control:Yes

Refrigeration Conveniences

Ice Selection:Cubed
Ice/Water Filter:Yes
Water Filter Indicator:Yes
Water Filter Location:Base Grill
Ice Maker:Yes
Ice Storage:Yes

Storage Features

Shelf Type:Adjustable
Tilt-out Door Storage:Yes
Crisper Style:Clear
Number of Shelves:3
Door Bins/Baskets:3
Shelf Material:Glass
Gallon Door Storage:Yes
Dairy Compartment:Yes

Misc. Specs

Width (in.)29.4684
Depth (in.)23.7744
Height (in.)82.96
Freezer Capacity (cu. ft.)5
Handle TypeProfessional
Total Capacity (cu. ft.)16
Refrigerator Capacity (cu. ft.)11
Ice MakerYes
Door Swing OptionReversible
Ice Storage Capacity (lbs.)6.6
Ice/Water DispenserNo
Defrost SystemAutomatic
Number of Doors1
ENERGY STAR QualifiedYes
Commercial Use ApprovedNo
Installation TypeBuilt-In
ADA CompliantNo
Counter DepthYes
Width (cm)75.56
Height (cm)212.72
Depth (cm)60.96
Product Weight (kg)201.85
Refrigerator SizeStandard
Overall Height (in.)82.96
Overall Height (cm.)212.72
