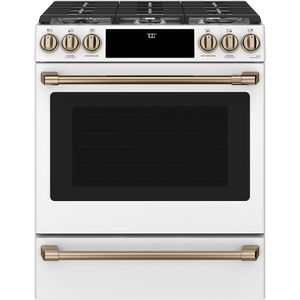

Product Dimensions 37.38"h x 29.88"w x 29.5"d
Entertaining for large groups is easy with the industry's first six burner, edge-to-edge cooktop that can accommodate cookware of all sizes and a cast-iron integrated griddle that provides enough room to perfectly flip crab cakes.Read More
Café Buy One, Save on All
Save up to 25% on eligible appliances. Ends 2025-06-18
Shop eligible itemsBuy 1-2
Save 15%
Buy 3-4
Save 20%
Buy 5+
Save 25%
Additional Savings Available
CALL FOR AVAILABILITY
Control your oven with your smart device or simply your voice using WiFi Connect.
Entertaining for large groups is easy with the industry's first six burner, edge-to-edge cooktop that can accommodate cookware of all sizes and a cast-iron integrated griddle that provides enough room to perfectly flip crab cakes.
Create an unforgettable dinner, using a 21K triple ring burner to do everything from searing scallops to simmering a lemon caper white wine sauce and a 15K power boil burner to boil water quickly for al dente angel hair pasta.
General Specs | |
| Product Weight (lbs.) | 224 |
| Color | White |
| Air Fry | No |
| Cooktop Features | Control Lockout, Digital Display, LP Convertible, Sealed Burners, Smudge-Proof Finish, Griddle Included |
| Appliance Fit Width (cm.) | 76 |
| Appliance Fit Width (in.) | 30 |
| Manufacturer Warranty | 1 Year Parts & Labor |
| Total Capacity (cu. ft.) | 5.7 |
| Color Finish Name | Matte White |
| Drawer Type | Storage |
| ADA Compliant | Yes |
| Induction Cooking | No |
| Range Type | Slide-In |
| Smart Compatible | Yes |
| Wifi Capable | Yes |
| Number of Elements/Burners | 5 |
| Convection Cooking | Yes |
| Sabbath Mode | Yes |
| Cut Out Depth | 24 |
| Cut Out Width | 30 |
| Cut Out Height | 36 |
| Width (cm) | 75.9 |
| Height (cm.) | 94.95 |
| Depth (cm.) | 74.93 |
| Product Weight (kg) | 101.61 |
| Cut Out Depth Centimeter | 60.96 |
| Cut Out Width Centimeter | 76.2 |
| Cut Out Height Centimeter | 91.44 |
| Voltage | 120 |
| Frequency | 60 |
| Amp | 15 |
| Fuel Type | Natural Gas |
| Number of Oven(s) | Single |
| Depth (in.) | 29.5 |
| Height (in.) | 37.38 |
| Width (in.) | 29.88 |
| Oven Features | Self-Cleaning, Broiler in Oven, Fingerprint Resistant Finish, Oven Temperature Probe, Temperature Control, Wi-Fi Capable, Delay Bake/Start, Keep Warm, Proofing Mode, Sabbath Mode, Voice Controlled |
| Oven Cleaning Method | Self Cleaning |
Features: | |
| Configuration | Range with Storage Drawer |
| Cooking System | True Convection |
| Cooking Technology | Convection |
| Oven Cleaning Type | Self-Clean with Steam Clean Option |
| Burner - Left Front | 21,000 BTU Tri-ring Burner |
| Burner - Left Rear | 5,000 BTU Precise Simmer |
| Burner - Right Front | 15,000 BTU |
| Burner - Right Rear | 12,000 BTU |
| Burner - Center | 9,500 BTU Front / 9,500 BTU Rear |
| Cooktop Burner Type | Sealed |
| Cooktop Surface | Deep Recessed; Porcelain-Enamel; Gray |
| Dishwasher Safe Knobs | Yes |
| Control Location | Front controls |
| Control Type | Backlit; Glass Touch |
| Valves (Degree of Turn) | 270 |
| Cooktop Burner Type | Radiant; Smoothtop |
| Control Location | Front controls |
| Control Type | Backlit; Glass Touch |
| Oven Control Features | Audible Preheat Signal; Auto Oven Shut-Off with Override; Auto Recipe Conversion; Auto Self Clean; C° or F° Programmable; Certified Sabbath Mode; Chef Connect; Control Lock Capability; Delay Bake; Option (Time Cook); Delay Clean Option; Electronic Clock & Kitchen Timer; Fast Preheat; Hi / Low; Broil; Oven "ON" Light; Self-Clean Cool Down Time; Display; Temperature Probe; Warm Mode |
| Oven Cooking Modes | Convection Bake; Convection Roast |
| Oven Features | 8-Pass Broil Element |
| Cooktop Burner Grate Features | Heavy-Cast Edge-to-Edge Grates |
| Cooktop Burner Grate Material | Cast-Iron |
| Self-Clean Oven Door Lock | Automatic |
| Oven Rack Features | 3 Self-Clean Oven Racks; 6 Rack Positions |
| Cleaning Time | Variable with Delay Clean Option |
| Fuel Type | Natural Gas (factory set) |
| Ignition System | Electronic |
| Leveling System | 4 Leveling Legs |
| Oven Interior | 1 Oven Interior Light; Black |
| Connected Capabilities | Amazon Alexa; The Google Assistant; Hestan Cue; IFTTT; Nest; Drop; Innit; DiGiorno |
| WiFi Connect | Built-In |
Accessories: | |
| Trim Kit | Optional; JXFILLR1BB |
| Grates | Included Center Grate |
| Grill | Optional; Integrated Cast Iron; JXCGRILL1 |
| LP Conversion Kit | Included |
| Trim Kit | Optional; JXFILLR1DD |
| Griddle | Included; Integrated Cast Iron |
Weight & Dimensions: | |
| Depth with Door Open | 43-7/8 in |
| Height to Top of Rear Vent Trim | 37-3/8 in |
| Height to Cooking Surface (in.) | 36-1/4 +/- 1/4 |
| Cabinet Width | Cabinet Width 30 in |
| Overall Depth | 29-1/2 in |
| Depth Without Handle | 26-7/8 in |
| Oven Interior Dimensions (W x H x D) (in.) | 24 x 19-7/8 x 20-5/8 |
| Cooktop Burner Grate Color | Matte Black |
| Oven Door Features | Big Clear View Oven Window; Matte Black Frameless Oven Door |
| Handle | Professional Style; Customizable; Consumer Removable |
| Handle Design | Café |
| Control Knobs | Weighted Stainless Steel Appearance |
Power / Ratings: | |
| Convection Wattage | 1200W |
| Top Burner BTU Rating - LP (000's BTU's) | (1) 18.0 Tri-Ring; (1) 15.0; (1) 12.0; |
| Top Burner BTU Rating - Nat. Gas (000's BTU's) | (1) 21.0 Tri-Ring; (1) 15.0; (1) 12.0; (2) 9.5; (1) 5.0 |
| Volts/Hertz/Amps | 120v; 60Hz; 15A |
| Bake/Broiler BTU Rating - LP (000's BTU's) | 16.0 Bake / 13.5 Broiler |
| Bake/Broiler BTU Rating - Nat. Gas (000's BTU's) | 16.0 Bake / 16.5 Broiler |
