Product Dimensions 39.25"h x 35.38"w x 25.63"d

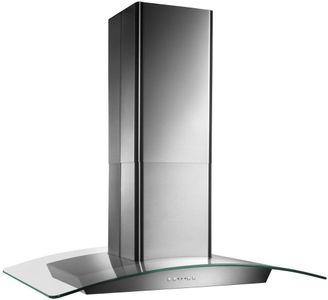

Broan Elite EI59 Series 36" Stainless Steel Curved Glass Canopy Island Ventilation with 3 speed electronic push control and bright quad halogen lightingRead More
CALL FOR AVAILABILITY
Ceiling mount
Telescopic flue accommodates 8' to 9' ceilings
6" round duct connector/backdraft damper
3-level halogen lighting (4 x 35 watt, 120V, Type MR16, GU10) (bulbs included)
4 push-button controls with LED speed indicator
Compatible with optional RF remote control accessory (BCR1)
Delay timer control automatically shuts off range hood after 10 minutes
Filter clean reminder
Dishwasher-safe filter features a quick-release latch
General Specs | |
| Width (in.) | 35.38 |
| Height (in.) | 39.25 |
| Duct Size (in.) | 6 |
| Depth (in.) | 25.63 |
| Collection | Elite |
| Color | Stainless Steel |
| Appliance Fit Width (cm.) | 90 |
| Color Finish Name | Stainless Steel |
| Range Hood Type | Island |
| ENERGY STAR Certified | No |
| Product Weight (lbs.) | 85 |
| Appliance Fit Width (in.) | 36 |
| Width (cm) | 89.87 |
| Height (cm.) | 99.7 |
| Depth (cm.) | 65.1 |
| Product Weight (kg) | 215.9 |
| Voltage | 120 |
| Amp | 3.55 |
| Frequency | 60 |
| Ventilation Type | Ducted |
Construction | |
| Chimney: | Fixed |
| Ductwork Type: | Vertical |
Dimensions | |
| Shipping Weight: | 85 |
| Depth, Chimney : | 10.88 |
| Min Chimney Height: | 30.5 |
| Max Height Above Cooktop: | 36 |
| Min Height Above Cooktop: | 24 |
Display | |
| Controls: | Mechanical |
General Features | |
| Filter Type: | 2 Removable Dishwasher Safe Mesh Grease Filters |
Other | |
| Watts: | 140 |
| Number of Lights: | 1 |
| Settings: | On/Off |
| Air Mover Type(s): | 500 CFM centrifugal blower |
| Air Mover(s) Speed: | 3 Speed |
Styling | |
| Design: | Chimney Style |
