Product Dimensions 7.63"h x 30"w x 2.38"d

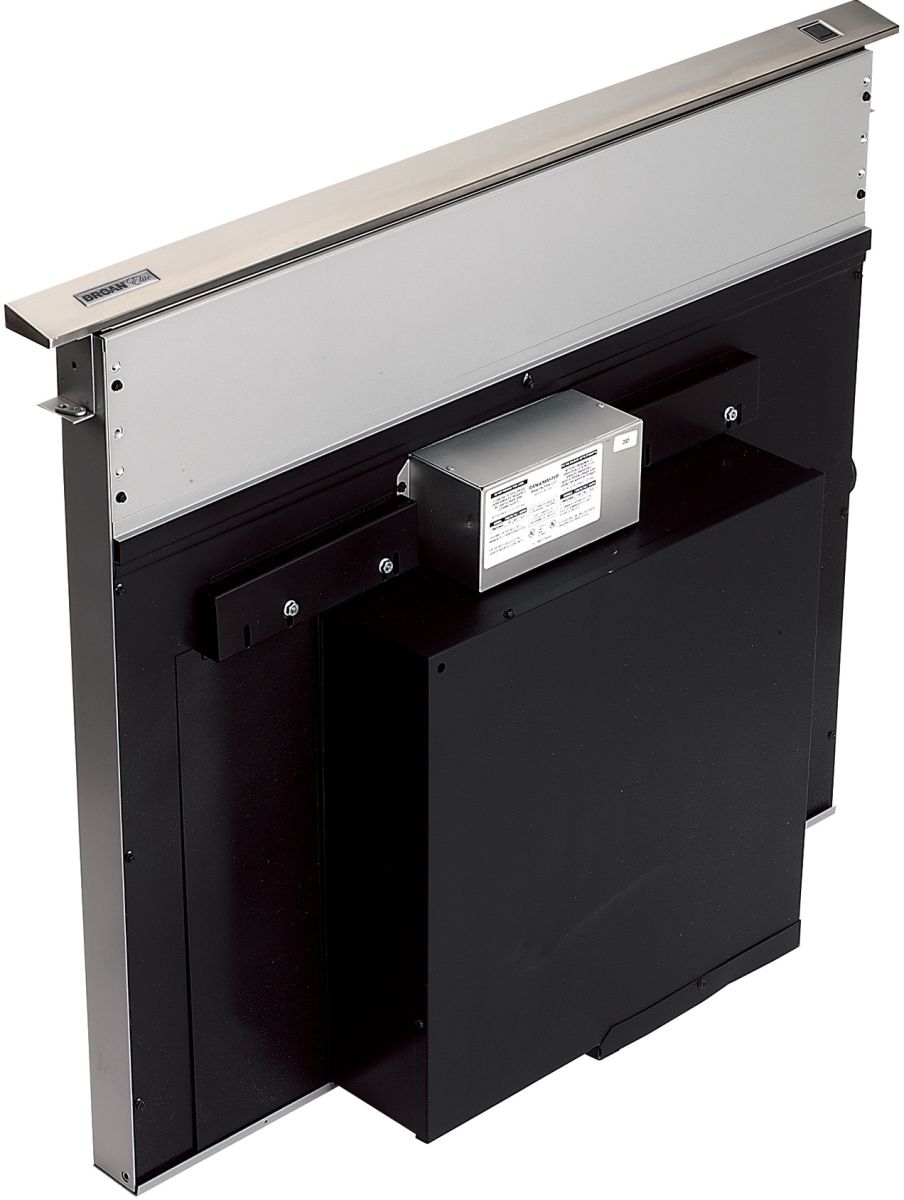

Broan Elite 30" Stainles Steel Downdraft Ventilation with 500 CFM and Heat SentryRead More
CALL FOR AVAILABILITY
Compact design is installed directly behind the cooktop for an unobtrusive appearance. Thin profile saves precious space under the cabinet
Chimney rises over 9-1/2 inches when activated, ideal for large pots and pans
Infinitely adjustable control is designed to provide convenient access to govern the blower speed for effective and quiet operation.
Heat Sentry adjusts speed of blower to high in case of excess heat
Dishwasher-safe filters are easy to remove and feature a stylish brushed stainless steel appearance for a professional look
General Specs | |
| Width (in.) | 30 |
| Height (in.) | 7.63 |
| Duct Size (in.) | 3 1/4 x 10 |
| Depth (in.) | 2.38 |
| Collection | Elite |
| Color | Stainless Steel |
| Appliance Fit Width (cm.) | 76 |
| Color Finish Name | Stainless Steel |
| Range Hood Type | Downdraft |
| ENERGY STAR Certified | No |
| Appliance Fit Width (in.) | 30 |
| Product Weight (lbs.) | 77 |
| Maximum CFM | 500 |
| Width (cm) | 76.2 |
| Height (cm.) | 19.38 |
| Depth (cm.) | 6.05 |
| Product Weight (kg) | 34.93 |
| Voltage | 120 |
| Amp | 4 |
| Ventilation Type | Ducted |
Construction | |
| Exhaust: | Ducted |
| Chimney: | Fixed |
| Ductwork Type: | Downdraft |
Dimensions | |
| Shipping Weight: | 77 |
Display | |
| Controls: | Mechanical |
General Features | |
| Filter Type: | 2 Dishwasher Safe Aluminum Grease Filters |
| Pollutant Removal: | Externally Vented |
Other | |
| Considerations: | Blower discharges right, left or down and slides side-to-side to ease installation (insufficient space for built-in ovens). |
| Air Mover Type(s): | Centrifugal |
| Air Mover(s) Speed: | 2850 |
| Number of Air Movers: | 1 |
Styling | |
| Design: | Retractable Downdraft |
