Product Dimensions 17.8308"h x 42"w x 30"d

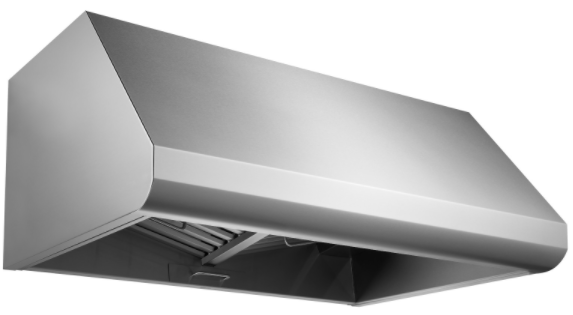

Built to deliver "Best-in-Class" performance, the WPD39 will be a beautiful addition to your outdoor kitchen. The size of the WPD39 Series provides unparalleled smoke capture and grease collection, via baffle filters positioned in a patent pending V-shape design.Read More
CALL FOR AVAILABILITY
Built to deliver "Best-in-Class" performance, the WPD39 will be a beautiful addition to your outdoor kitchen. The size of the WPD39 Series provides unparalleled smoke capture and grease collection, via baffle filters positioned in a patent pending V-shape design. Grease travels to a removable tray located at the back of the hood .... easy to remove & easy to clean. And with several choices of flue extension, wall extension, and BEST blowers, you are truly designing the range hood of your dreams to complement your outdoor kitchen.
18" tall hood with impressive 30" deep capture area has corrosion resistant stainless steel construction that stands up in outdoor environments
Modular Series with choices of internal or external (sold separately) blower systems. Internal features 1300 Max Blower CFM with quiet 2.25 Sones operation at normal setting.
Unique V-shape baffle filter design (patent pending) allows grease to travel into a non-stick grease tray for the easiest of clean ups
Infinite speed control gives you the convenience of automatically remembering last setting.
Heat Sentry® detects excessive heat and adjusts blower speed to high automatically to prolong product life by reducing damaging effects of high temperatures
10" round duct connector with backdraft damper
Dual level Halogen bulbs (MR16, GU10-50W) to keep the grill and surrounding area flooded with light, (Two bulbs included in 36", three in 48" and 60" widths.)
Optional flue covers available to fit 8’, 9’ and 10’ ceilings for standard or wall extension installations
General Specs | |
| Width (in.) | 42 |
| Height (in.) | 17.8308 |
| Duct Size (in.) | 10 |
| Depth (in.) | 30 |
| Collection | WPD39M |
| Color | Stainless Steel |
| Appliance Fit Width (cm.) | 107 |
| Manufacturer Warranty | 5 Year Parts/2 Year Labor |
| Color Finish Name | Stainless Steel |
| Range Hood Type | Wall Mounted |
| ADA Compliant | No |
| ENERGY STAR Certified | No |
| Outdoor Approved | Yes |
| Appliance Fit Width (in.) | 42 |
| Smart Compatible | No |
| Maximum CFM | 1300 |
| Grease Filter Type | Baffle |
| Bulb Type | Halogen |
| Sones Rating | 2.0 |
| Height Above Cooktop | 36 |
| Ventilation Direction | Vertical |
| Width (cm) | 106.68 |
| Height (cm.) | 45.72 |
| Depth (cm.) | 76.2 |
| Voltage | 120 |
| Amp | 1.4 |
| Frequency | 60 |
| Noise Level (Sones) | Quiet - (Low) |
| Ventilation Type | Ducted |
