Product Dimensions 33.46"h x 23.43"w x 27.8"d

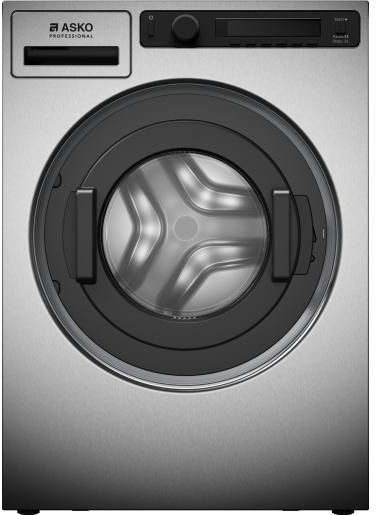

This washing machine from ASKO's professional range features the unique Quattro Construction™, the hygienic Steel Seal™ door and has in total 25 programs of which 10 are fully customizable which ensures a perfect cleaning result for all types of businesses. The drum has a volume of 80 liter and holds a load of 9 kg. Thanks to the Quattro Construction™ spinning at 1400 rpm is virtually vibration-free, with a residual moisture of 49 %. It is fitted with a strong and reliable BLDC motor and has an element effect of 3 kW (1 ph/16 A) and is re-wirable to 3 ph/ 3 kW/ 10 A.Read More
CALL FOR AVAILABILITY
The professional washers come with specialized disinfection programs which fulfil the strict standards of public health authorities. This is assured with a high-power output and a heating system that ensures that the chosen temperature is reached and maintained in order to guarantee disinfection. Our disinfection program has an efficient pre-wash, which ensures that all proteins in the laundry are dissolved and removed before raising the temperature in the main wash.
Spin without vibrationsThe outer drum rests on four strong shock absorbers firmly attached to the steel bottom plate. The entire construction is located inside the machine and spinning at high spin speed can be done virtually free of vibrations. The Quattro Construction™system is extremely durable and prolongs lifetime of the entire machine.• The outer drum rests on four supporting shock absorbers, firmly attached to a steel bottom plate.• The entire construction stands inside the casing and spinning at even up to 1600 rpm can be done virtually free of vibrations.• The Quattro Construction™ system is extremely durable and prolongs lifetime of the entire machine.• Stainless steel inner and outer drum.
The specially developed mop program takes extra good care of your cleaning equipment. An efficient cold pre-wash removes larger fractions of dirt and gravel before the efficient main wash.
The washing machines are prepared for connection to external dosing systems and the machine can control up to six different chemicals and automatically adjusts the amount according to the weight of the load, which will prevent overdose and will save the environment and also save money. You can also easily connect standard peristaltic pumps for dosing detergent and make a simple programming in the service menu to set the time the pump should be active.
Perfectly crafted Active Drum™ - we care about your laundry by taking care of the details. ASKO has a unique drum shape and hole pattern in the drum providing deep cleaning and gentleness at the same time. We call it Active Drum™. You call it perfectly clean laundry. Active Drum™ test - we added 23,6 grams of gravel and started a normal wash cycle. After the wash the remaining gravel was collected, photographed and weighed. Remaining gravel from the active drum was 0,6 g which is only 2,7 % of the original weight.
The outer drum in an ASKO professional washer is made of durable stainless steel. Why? Because it is tougher, has higher quality and allows for you to wash at higher temperatures and spin at higher speed. The top and front plates are also made of stainless steel.
SKO Professional washers can be connected to both cold and hot water sources. Connecting to a hot water source shortens the washing cycles and lowers the energy consumption of your washer. An optimal result is achieved using a 65º C water source.
Your ASKO professional washer can be equipped with either a pump or valve draining connection. An outlet valve is preferred in heavy-duty environments, reducing program times by taking water out of the drum faster, while also allowing larger fractions of dirt to pass more easily compared to using a drain pump.
We know you have other things to do than to figure out complicated functionalities on your appliances. ASKO Professional washers are easy to use and maintain with the intuituve EasyControl™ LCD screen, programming and set-up of the washer is easy. You’ll be up and running in no time, just as we like it.
The door function is key on a washing machine, and with the right design it makes a big difference. That is why we put extra energy into designing a unique door system. The door opens 180 degrees which makes it possible to put a laundry basket close to the opening. Thanks to the rubber bellow free Smart Seal™ construction loading and unloading is easier than ever. Finally, the smart door lock re-uses the energy from opening the door when you close it. Just give it a slight push in the right direction and it closes like magic.
The EasyControl™ TFT display makes handling and programming your ASKO professional washer easy and intuitive. With a left-to-right interaction, the user is guided through set-up and programming of the washer in one of 25 supported languages, which makes it easy to use ASKO Professional washing machines all over the world.
Web App for Owner only: Status, Current state, Appliance usage, (By year, By month, By week), Appliance software version, Total cycle count, Appliance location data, Appliance characteristics, Purchasing and warranty data, Access usage statistics in logbook, Link to technical documentation and manuals, Create and edit Laundry Rooms, Edit available washing programs for end user, Creation of new washing program to be sent to washing machine, Create aftersails service ticket.
The operating costs are kept at a minimum thanks to the motor weight control that measures the load weight and calculates the amount of water needed for the washing cycle. If you use Auto Dose the motor weight control will also calculate the amount of detergent needed, avoiding both underdosing and expensive overdosing.
General Specs | |
| Product Weight (lbs.) | 203.93 |
| Color | Stainless Steel |
| Handle Color | Black |
| Shipping Depth (cm) | 77.6 |
| Shipping Height (cm) | 92 |
| Shipping Width (cm) | 64 |
| Weight Kilogram | 95.9 |
| Depth W Door Open 90 Degrees (cm) | 96.5 |
| Door Panel Type | Glass |
| Color/Finish Name | Stainless Steel |
| Appliance Fit Width (in.) | 23 |
| Sanitize Option | Yes |
| ADA Compliant | No |
| Smart Compatible | Yes |
| Total Capacity (cu. ft.) | 2.8 |
| Shipping Depth (in.) | 30.55 |
| Shipping Width (in.) | 25.2 |
| Shipping Height (in.) | 36.22 |
| Product Weight (kg) | 92.5 |
| Height (cm.) | 85 |
| Depth (cm.) | 70.6 |
| Width (cm) | 59.5 |
| Type of Washer | Front Load |
| Voltage | 220/240 |
| Frequency | 50 |
| Amp | 16 |
| Depth w/Door Open 90 Degrees (in.) | 37.99 |
| ENERGY STAR Certified | No |
| Number of Cycles | 25 |
| Depth (in.) | 27.8 |
| Door Color | Black Glass |
| Drum | Stainless Steel |
| Height (in.) | 33.46 |
| Stackable | Yes |
| Width (in.) | 23.43 |
| Washer Features | Door Window, Front Controls, Adjustable Legs, Wi-Fi Capable, Delayed Start |
| Appliance Fit Width (cm.) | 60 |
Construction | |
| Loading capacity | 9 kg |
| Door opening diameter | 310 mm |
| Door maximum opening angle | 180 ° |
| Door hinge placement | Stainless steel |
| Removable lifters for easy maintenance | Yes |
Standard Electrical Connection | |
| Connected load | 3200 W |
| Length of electrical cord | 2100 mm |
| Number of phases | 1 |
Water Connection/Drainage | |
| Water connection | Size 3/4" - Can be connected to hot or cold water |
| Extra durable and leakage safe PEX inlet hose | Yes |
| Drain system | No |
| Drain system | Drain |
| Maximized water inlet time | Yes |
| Maximized water inlet time | Yes |
| Draining capacity | 20 l/min |
Controls | |
| Type of display | LCD |
| Personal settings for all programmes | Yes |
| Remaining time indicator | Yes |
| Dispenser | Manual |
| Detergent dispenser | 3 compartment |
| Sensors | Water level sensor |
| Emergency door opening function | Yes |
| Language settings | Danish German English Spanish Finnish French Italian Dutch Norwegian Russian Swedish Croatian Estonian Czech Slovenian Slovak Polish Latvian Lithuanian Japanese Chinese simpified Chinese traditional |
| Child lock on display | Child lock on display |
Logistic information | |
| Adjustable feet | 10 mm |
| Length inlet hose | 150 cm |
| Length outlet hose | 160 cm |
| Product code | 738165 |
Features | |
| Spin speed setting | Fixed |
| Unbalance detection - Protects the washer against harmful vibrations | Yes |
| Overflow protection | Yes |
| Delayed start | Up to 100 hours |
| Overheat protection | For motor and electronics |
Performance | |
| Max spin speed | 1400 rpm |
| G- factor | 530 |
| Remaining moisture after spin | 53 % |
| Heater power | 3000 W |
| Temperature range | Cold - 90 °C |
Energy label information | |
| Washing performance class | A |
| Water consumption 60 °C (tested program) | 47 l |
| Estimated annual water consumption | 9900 l |
| Noise level during washing dB(A) | 61 |
| Noise level during spin dB(A) | 76 |
| Power consumption in standby mode | 0.4 W |
| Consumption in off mode | 0.4 W |
Programmes | |
| Power consumption 60 °C (tested program) | 0.87 kWh |
| Number of programs | 25 |
| Professional programs | Quick 40ºC Allergycotton 60ºC Desinfection 90ºC Desinfection 60ºC Desinfection 40ºC Microfibre 60ºC Rinse Wool/hand 30ºC Synthetic 40ºC Quick 60ºC White/colour 40ºC White/colour 60ºC White 90ºC White/colour 20 °C Spin Heavy 60ºC Heavy 90ºC Drumcleaning Allergysynthetics 40ºC Allergysynthetics 60ºC Allergycotton 90ºC Microfibre 40ºC Mop 60ºC Mop 90ºC Drain |
Test Certificate | |
| ISO 14001 certified manufacturing | Yes |
| ISO 9001 certified manufacturer | Yes |
Connection Options | |
| Coin operation | Yes, prepared |
| Automatic dosing system | Yes, external |
